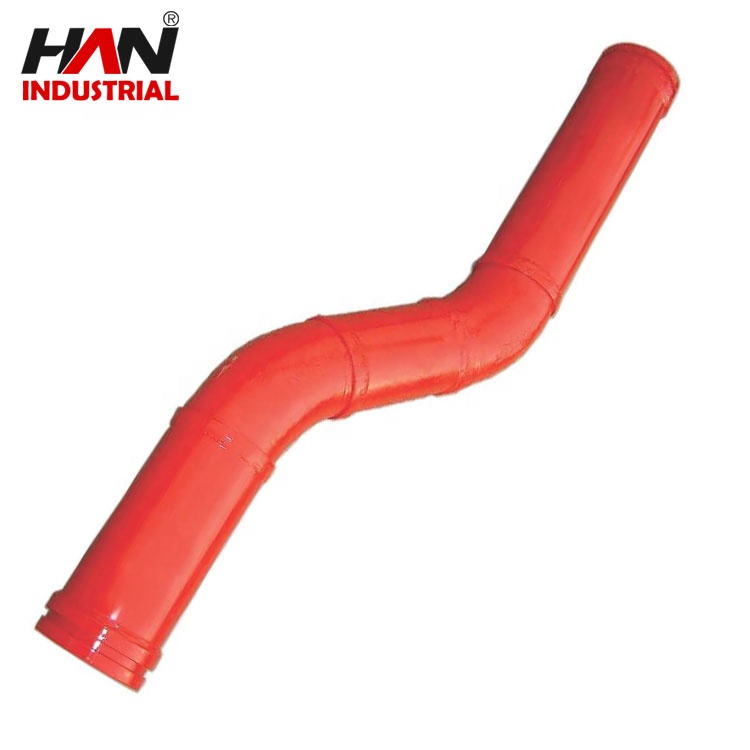

concrete pump spare part S pipe Z pipe for putzmeister second delivery pipe with flange

Product description：
INQUIRY

Product Description

Size:DN125,DN150,DN100 etc
Radius:R275,R281,R180,R285 etc
Degree:90,60,45,30, 20, 14,10 etc
Material: Casting High Manganese
Name:Elbows/Reducers/Bends
Brands:Schwing,Putzmeister,Cifa,Zoomlion,Kyokuto, etc
Working life:20000-35000m³
Also make special parts according to your samples or drawings!
A.Boom Elbow

product	size	degrees	radius	material
elbow	DN 125(5-1/2'')	15	275mm	MN 13-4
elbow	DN 125(5-1/2'')	20	275mm	MN 13-4
elbow	DN 125(5-1/2'')	30	275mm	MN 13-4
elbow	DN 125(5-1/2'')	45	275mm	MN 13-4
elbow	DN 125(5-1/2'')	90	275mm	MN 13-4
elbow	DN 125(5-1/2'')	90	180mm	MN 13-4
elbow	DN 120(5'')	90	281mm	MN 13-4
elbow	DN 100(4-1/2'')	45	275mm	MN 13-4
elbow	DN 100(4-1/2'')	90	275mm	MN 13-4
elbow	DN 100(4-1/2'')	90	285mm	MN 13-4
elbow	DN 150(6'')	90	putzmeister	MN 13-4
elbow	DN 150(6'')	90	schwing	MN 13-4
reducing elbow	7''-6''	90	putzmeister	MN 13-4
reducing elbow	7''-6''	90	putzmeister	MN 13-4
